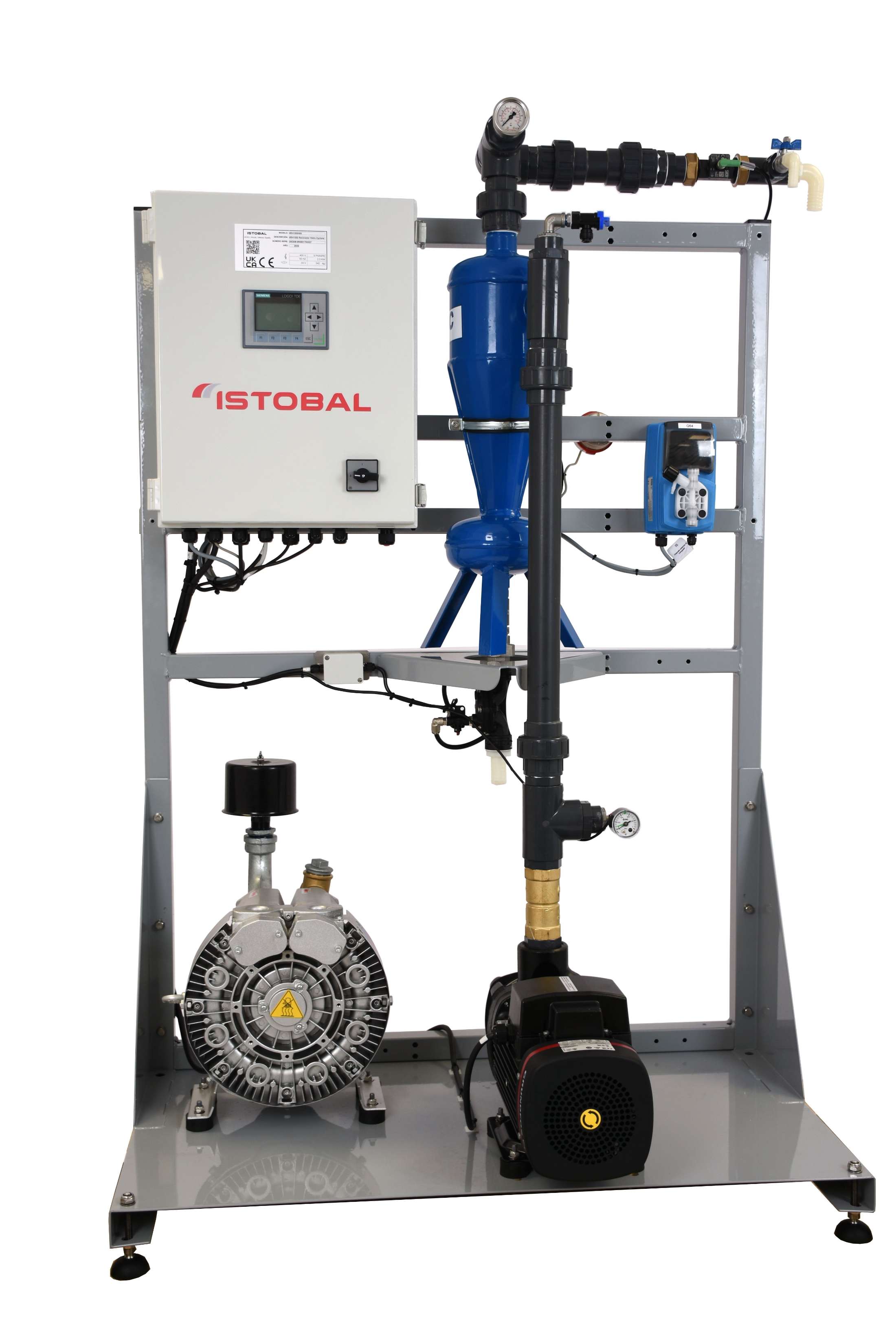

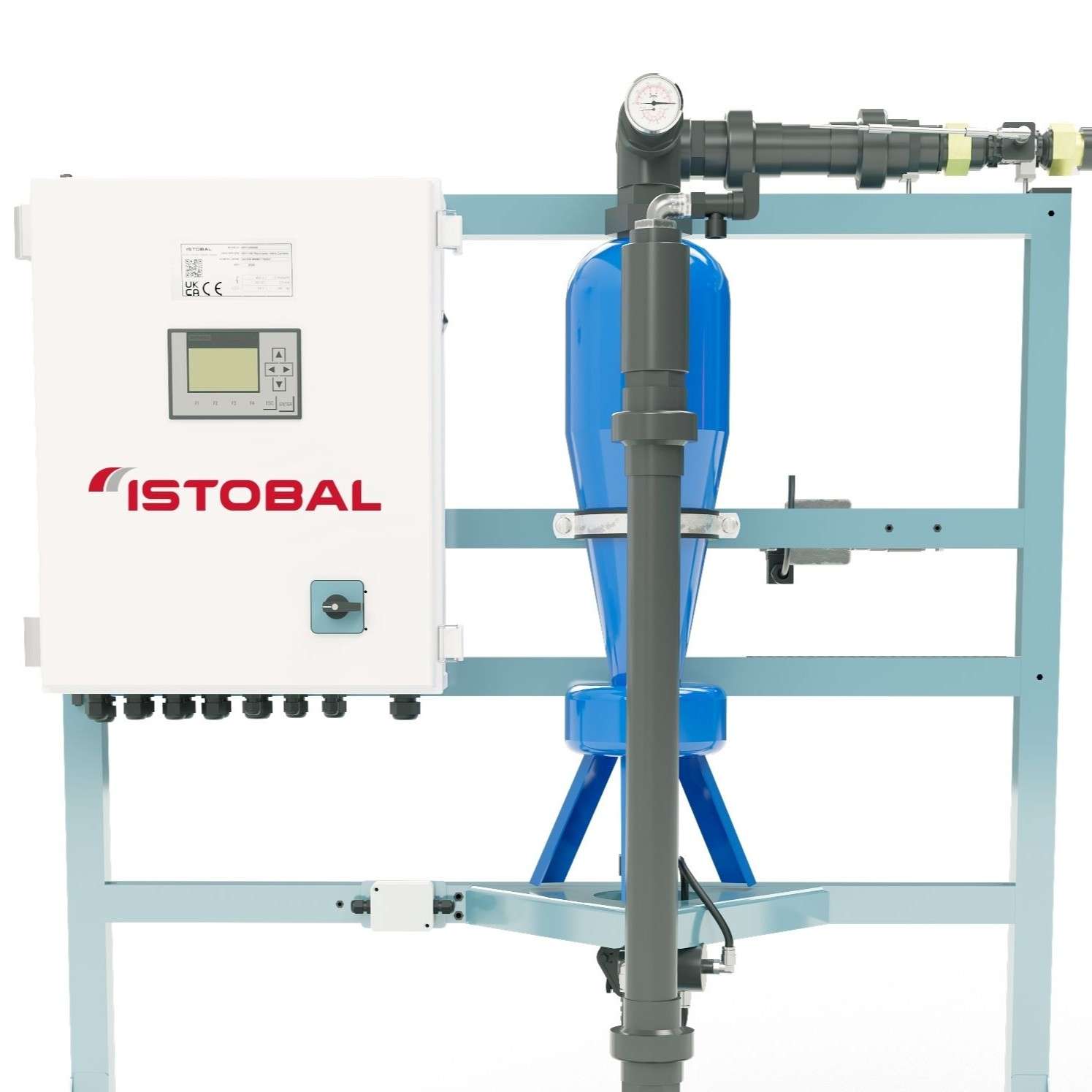

4RH1 Hydro Cyclone Recycler

The ISTOBAL Hydro Cyclone recycler is an innovative water treatment and recycling solution for washing the external surfaces of vehicles. The system treats 100% of incoming water, using recycled water in the early stages of rollover and tunnel washing cycles, reducing fresh water use in an automatic wash by up to 80%. By focusing on sustainability, this system represents a significant step towards protecting vital resources and boosting operational efficiency in the industry.

Enquire about 4RH1 Hydro Cyclone Recycler

HYDRO CYCLONE treats 100% of the incoming water, using recycled water during the initial washing phases in gantry and tunnel systems, achieving up to an 80% reduction in fresh water consumption during an automatic wash. With a focus on sustainability, it represents a significant step towards conserving vital resources and improving operational efficiency in the industry.

Product Overview

Type of system- The equipment consists of a "plug & play" system, designed for a treatment flow rate of 5 m³/h and 10 m³/h (recycling capacity for up to 3 wash gantries operating simultaneously).
Improvements-
- Lower maintenance costs- replacement of zeolite or sand filter, surface pump
- More robust- The Hydro Cyclone system is not affected by the presence of oils
- Connectivity- Smart Wash equipment connectivity and Flow control

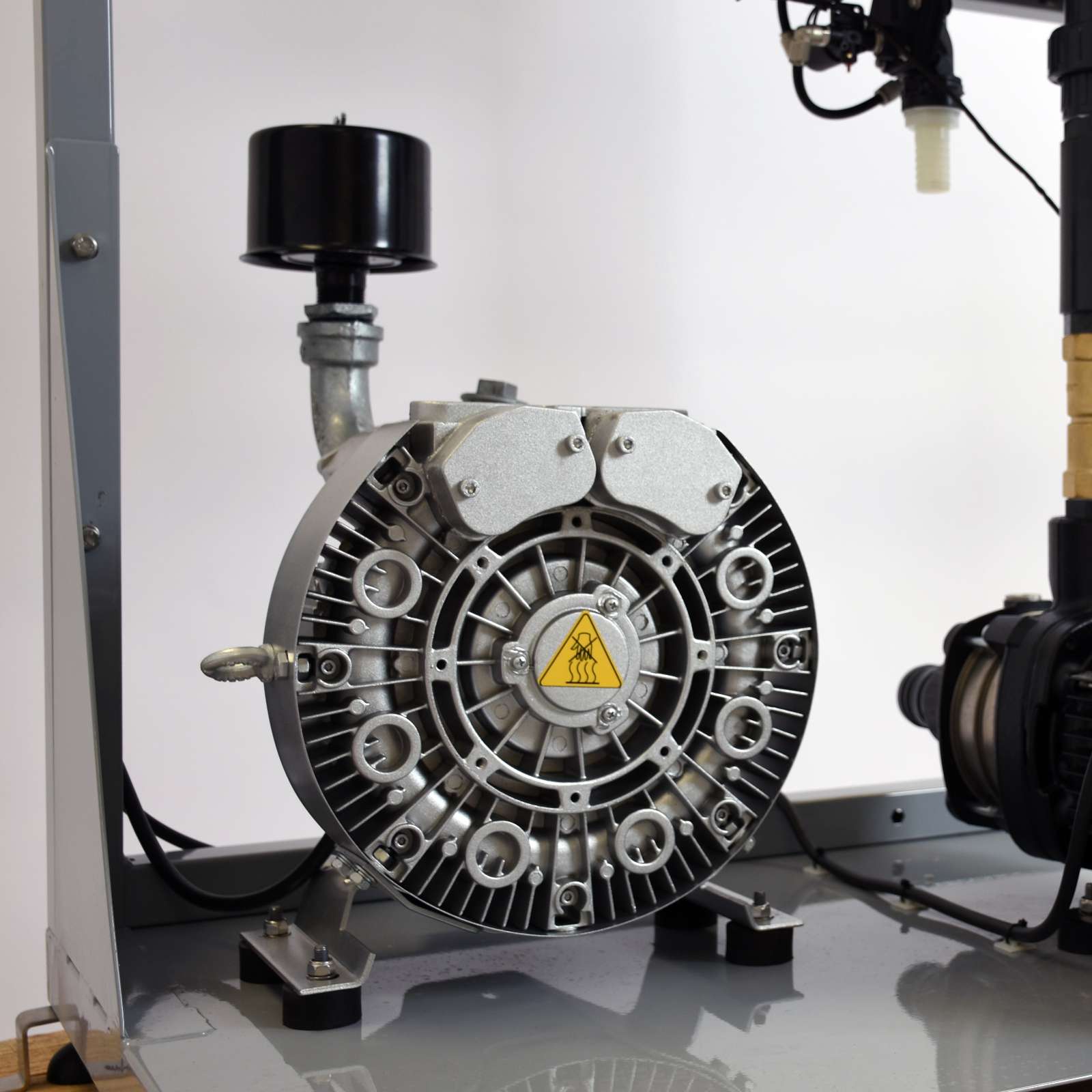

- Odour Reduction- High-capacity blower and pre-disinfector
- Lower TOC ( Total Owner Cost vs Sand Filter)- 16%
- Adaptable- To existing civil works
Additional options- ISTOBAL's Hydro Cyclone Recycler offers a wide range of optional features that enhance the quality of the treated water, extending the lifespan of the washing equipment and improving the final quality of vehicle washing
- Chemical dosing
- Recycled Water Tank
- Hydrocarbon and sludge level sensor
- Submersible booster pump and tank 200L
- Conductivity monitor
